Tool Applications

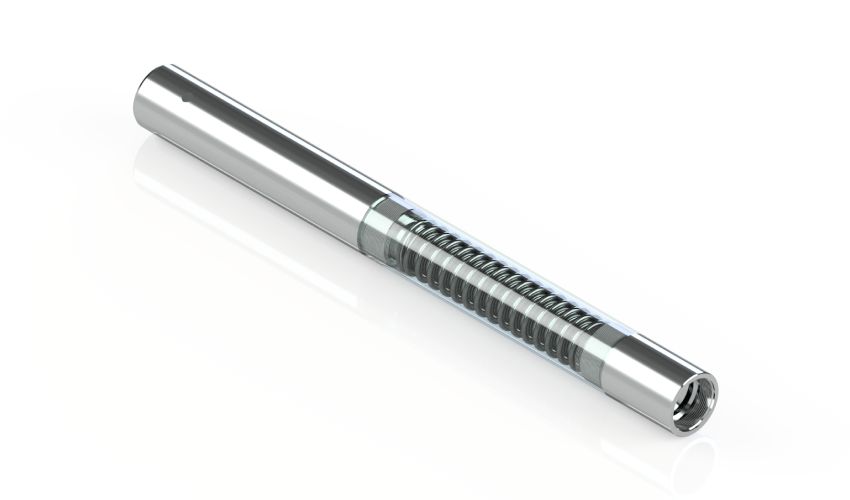

Storm Choke J safety valves are velocity-type, wireline- retrievable valves that are normally opened, direct-controlled valves. These valves operate on a spring-loaded, flow bean, pressure-differential principle and are designed for high-volume wells
Design Features & Benefits
- Detent mechanism
- Metal-to-metal ball and seat assembly
- Through-conduit design
- Positive snap-action closure
- Through-conduit design lessens turbulence and sand-fouling problems
- Run and set by standard wireline methods
- Adaptable to any Halliburton lock mandrel
- Designed to locate in any Halliburton landing nipple
- Can be located on large bore intervention packers
Technical Data
|
MAX OD (In) |
LENGTH (In) |
THREAD CONNECTION |
|
1.19 |
0.38 |
OPTIONAL |
|
1.41 |
0.68 |
OPTIONAL |
|
1.75 |
0.75 |
OPTIONAL |
|
2.12 |
1 |
OPTIONAL |
|
2.73 |
1.5 |
OPTIONAL |
|
3.12 |
1.5 |
OPTIONAL |
|
3.72 |
2 |
OPTIONAL |
|
3.88 |
2 |
OPTIONAL |
