Tool Applications

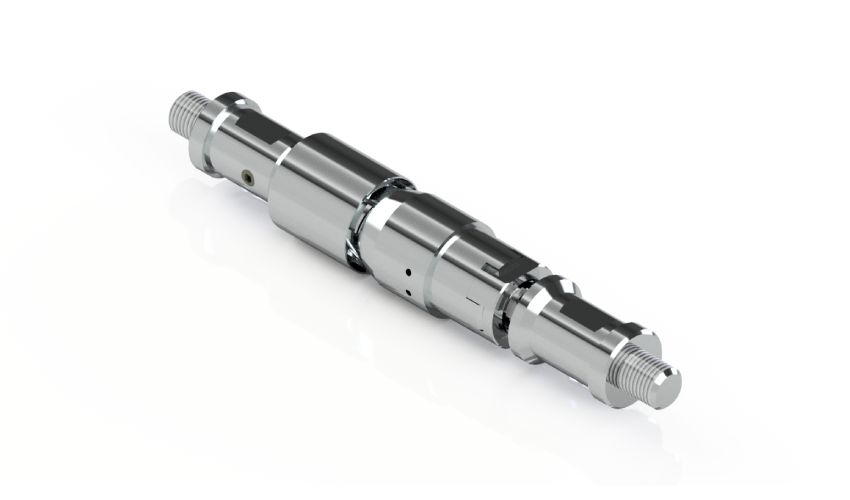

Function of the shifting tool is to open, close & shift the position of the flow circulation devices or sleeves inside the bore hole. The B type shifting tool works similar to BO type shifting tools with only difference in it is that the B type shifting tool has a key whereas in BO shifting tool, it is not.
A shear-releasing tool relies on a shear pin mechanism for release
Design Features & Benefits
- The key feature in the B shifting tool provides precise control over the manipulation of downhole components, allowing for accurate positioning and adjustment.
- Reducing the time and resources required for various tasks.
- Minimizing the need for additional equipment or personnel.
Technical Data
|
OD (In) |
SSD ID (In) |
THREAD CONNECTION |
|
1 |
1.375 |
5/8 – 11 UNC |
|
1.187 |
1.5 |
15/16 – 10 UN |
|
1.375 |
2.125 |
15/16 – 10 UN |
|
1.75 |
2.562 |
15/16 – 10 UN |
|
1.75 |
3.125 |
15/16 – 10 UN |
